High Speed Snack Food Packaging Machine with Multihead Weigher
| MOQ: | 1 |
| Preis: | Negotiations |
| Standardverpackung: | Internationale Standardverpackung für den Versand |
| Lieferfrist: | 30 Tage |
| Zahlungs-Methode: | L/C, T/T, Western Union |
| Lieferkapazität: | 300 Sätze pro Jahr |
Einzelheiten
Herkunftsort
Shanghai
Markenname
Waylead
Zertifizierung
/
Modellnummer
WG-250
Dokument
Verpackungsgeschwindigkeit:
≦70 Beutel/Min
Taschengröße:
Länge: ≦ 400 mm, Breite: 130–260 mm
Filmmaterial:
Flachbeutel, Standbodenbeutel, Reißverschlussbeutel, Verbundfolienbeutel und andere Arten.
Stromversorgung:
380V
Luftverbrauch:
5–7 kg/cm2; 0,4 m3/min
Leistungstyp:
Elektrisch
Stromverbrauch:
8 kW
Material:
Stianless-Stahl
Verpackungssortiment:
Granulat, Pulver, Flüssigkeit
Hervorheben:
high speed snack packaging machine
,multihead weigher packaging machine
,doypack snack food packaging machine
Beschreibung des Produkts
High Speed Snack Food Packaging Machine with Multihead Weigher
Snack packaging is a race against time. Every second of downtime costs money, and every gram of overfill eats into margins. This high speed snack food packaging machine integrates directly with a 10‑ to 24‑head multihead weigher to deliver fast, accurate, and reliable bagging for chips, nuts, trail mix, popcorn, and pretzels.
The system operates as a vertical form fill seal (VFFS) machine or as a pre‑made pouch filler, depending on your bag style preference. At full speed, it produces 80 to 120 bags per minute, with weight accuracy within ±0.5 grams. The multihead weigher uses a combination weighing algorithm to select the closest possible weight match from multiple hoppers, minimizing product giveaway.
A nitrogen flush module is available for products that require extended shelf life. The machine’s film tracking system automatically corrects misaligned print registration, reducing film waste. Touchscreen controls store recipes for different snack types — change from potato chips to cheese puffs in under five minutes. For snack manufacturers scaling up from manual lines, this machine is the next logical step.
Technical Specifications
| Specification | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700×1140×1470 mm | 1850×1250×1520 mm | 2100×1500×1520 mm |

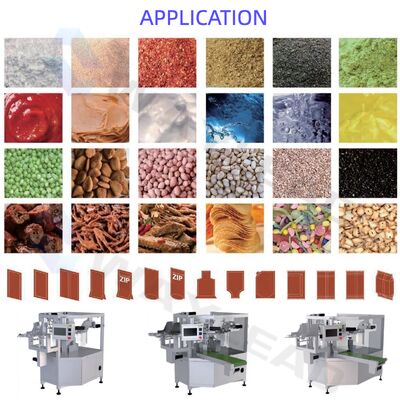

Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities
Particles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials
Powders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials
Liquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergents
Sauces
Tomato sauce, peanut butter, jam, chili sauce, bean paste
Other Materials
Various other products suitable for bagging
Key Features & Advantages
GMP Compliance & CE Certification
Dual authoritative certifications meet stringent quality and safety requirements for pharmaceutical, food, and healthcare sectors. Streamlines global market access and eliminates international trade barriers while safeguarding product quality and consumer health.
Full Servo Control System
Ultra-reliable, high-speed precision operation with reduced equipment failure rates and unplanned downtime. Adapts flexibly to variable packaging rhythms and fulfills high-throughput production demands with pinpoint accuracy in material dosing, zipper doypack forming, and heat sealing.
Intelligent Empty Bag Tracking
Real-time detection of bag presence with instant interlock control to prevent empty bag sealing. Reduces packaging material waste, slashes manual sorting labor, lowers production costs, and enhances finished product purity.
8-Station Integrated Structure
Seamless connection of multiple packaging processes governed by programmable PLC system. Features 6 user-friendly flat touch screens and intuitive HMI interface for hassle-free parameter setting, real-time production monitoring, and quick troubleshooting. Lowers operator training threshold and guarantees long-term stable production.
Complete Packaging Solutions
Our comprehensive packaging range includes VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
